ARM Cortex-A53

History



The Cortex-A53 is a high-performance processor core designed by ARM Holdings. It was first introduced in 2013 as part of the Cortex-A50 series of processors, which also included the Cortex-A57 and Cortex-A72 cores. The Cortex-A53 was designed to be a more efficient and power-sensitive version of the Cortex-A57, with the goal of providing a good balance of performance and energy efficiency for use in a variety of devices, including smartphones, tablets, and other embedded systems.



Architecture



The Cortex-A53 is a 64-bit processor that uses the ARMv8-A instruction set architecture (ISA). It is a “big.LITTLE” processor, meaning that it can be used in a configuration with other Cortex-A processor cores to create a heterogeneous system-on-chip (SoC) in which different cores are used for different tasks. In a big.LITTLE configuration, the Cortex-A53 cores are typically used for less demanding tasks, while the more powerful Cortex-A57 or Cortex-A72 cores are used for more demanding workloads.



The Cortex-A53 is a in-order, dual-issue superscalar processor that can execute up to two instructions per cycle. It has a seven-stage pipeline and supports out-of-order execution, which allows it to achieve high performance by overlapping the execution of instructions. The Cortex-A53 also supports advanced features such as hardware virtualization, TrustZone security, and SIMD (single instruction, multiple data) instructions for media processing.



Features



Some of the key features of the Cortex-A53 processor include:



  • 64-bit architecture
  • ARMv8-A instruction set support
  • Big.LITTLE configuration support
  • Dual-issue, superscalar design
  • Out-of-order execution
  • Hardware virtualization support
  • TrustZone security support
  • SIMD instructions for media processing

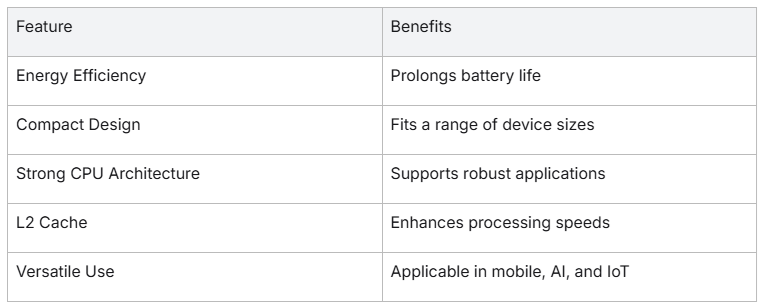

Benefits



The Cortex-A53 processor offers a number of benefits, including:



Good balance of performance and energy efficiency: The Cortex-A53 is designed to provide a good balance of performance and energy efficiency, making it suitable for use in a wide range of devices.



Flexibility: The Cortex-A53 can be used in a big.LITTLE configuration, which allows it to be paired with other Cortex-A processor cores to create a heterogeneous SoC. This allows for more flexibility in terms of performance and power consumption, depending on the needs of the device.



Advanced features: The Cortex-A53 supports a number of advanced features, such as hardware virtualization, TrustZone security, and SIMD instructions, which can be useful for a variety of applications.



Benchmarks



The performance of the Cortex-A53 can vary depending on the specific implementation and the workload being run. In general, the Cortex-A53 is suitable for a wide range of tasks, including basic computing, multimedia processing, and web browsing. In benchmarks, the Cortex-A53 has been shown to offer good performance compared to other processors in its class.



Description of the block diagram



The block diagram of the Cortex-A53 processor is complex and includes a number of different components. At a high level, the processor consists of the following main blocks:



Instruction fetch and decode: This block is responsible for fetching instructions from memory and decoding them into a form that can be executed by the processor.



Execution units: These are the units that actually execute the instructions fetched by the processor. The Cortex A53 includes a number of different execution units, including integer and floating point units, as well as NEON SIMD units.



L1 and L2 caches: These are small, fast memories that are used to store frequently accessed data and instructions. The Cortex A53 includes separate L1 caches for data and instructions, as well as a larger L2 cache that is shared between the two.



Memory controller: This block is responsible for managing access to main memory and ensuring that data and instructions are delivered to the processor in a timely manner.



Add-Ons



There are several add-ons that can be used with the Cortex-A53 processor to enhance its functionality and performance. Some of the most common add-ons include:



Floating Point Unit (FPU): The FPU is a specialized processor that handles floating point arithmetic, which is often used in scientific and engineering applications. The Cortex-A53 processor includes a single-precision FPU, which can handle basic floating point operations, such as addition, subtraction, and multiplication.



Advanced SIMD (NEON): NEON is a multimedia extension that allows the Cortex-A53 processor to perform SIMD (Single Instruction, Multiple Data) operations on multiple data elements simultaneously, improving performance for tasks such as image and video processing.



TrustZone: TrustZone is a security extension that allows the Cortex-A53 processor to create a secure execution environment for sensitive tasks, such as handling personal or financial data.



Virtualization: Virtualization allows the Cortex-A53 processor to run multiple operating systems and applications concurrently, improving efficiency and resource utilization.



L1 and L2 Cache: The Cortex-A53 processor includes on-chip L1 and L2 cache memory, which can be used to store frequently accessed data and instructions, reducing the need to access slower external memory.



JTAG Debug Port: The JTAG (Joint Test Action Group) debug port allows developers to connect to the Cortex-A53 processor and debug code, identify and fix problems, and perform other tasks.



Power Management Unit (PMU): The PMU is responsible for controlling the power consumption of the Cortex-A53 processor and can be used to optimize battery life in portable devices.



Usage



The Cortex A53 was first used in Qualcomm’s Snapdragon 410 processor, which was released in 2014. Today, it is used in a wide range of devices, including smartphones, tablets, and other consumer electronics. Some examples of devices that use the Cortex A53 processor include the Samsung Galaxy S5, the Motorola Moto G, and the Nokia Lumia 830.
