Imagine a world where light itself can be harnessed to revolutionize technology—this is the promise of single-photon avalanche diodes (SPADs). These specialized semiconductor devices detect individual photons with remarkable sensitivity, opening doors to advanced applications in fields ranging from quantum optics to medical diagnostics.
At the heart of SPAD technology lie intricate principles of photon detection and electronic behavior, transforming how we understand light interactions. The combination of their unique working mechanisms, including Geiger-mode operation and advanced architectures, allows SPADs to achieve impressive performance metrics like high photon detection probability and minimal timing jitter.
In this article, we will delve into the fundamentals of SPADs, explore various types and their performance, examine recent advancements in this versatile technology, and survey the wide-ranging applications that benefit from their extraordinary capabilities.
Single-Photon Avalanche Diodes (SPADs) are advanced sensors used for single-photon detection. They excel at detecting faint light signals, making them ideal for low-light applications. SPADs operate by entering a self-sustaining avalanche when detecting a photon.
Key Characteristics of SPADs:
– Quantum Efficiency: SPADs are known for high quantum efficiency, allowing for effective photon detection.
– Dark Count Rates: This measures false positives in low light. Lower rates are preferred for accuracy.
– Timing Resolution: SPADs offer precise time measurements between photon arrivals, crucial for applications like time-of-flight measurements.
– Spectral Range: This determines the range of wavelengths the SPAD can detect.
– Breakdown Voltage: The reverse voltage needed to trigger an avalanche current.
SPADs work by using electric fields within a depletion region. Here’s how it works:
Factors such as detection efficiency, dynamic range, and timing jitter are also considerations for SPAD performance. With advances in technology, SPADs continue to improve in areas like reduction of dark counts and enhancement of detection efficiencies.
Single-Photon Avalanche Diodes (SPADs) are unique sensors designed to detect single photons with high precision. They are especially useful in low-light situations, such as night vision or scientific research involving faint signals. The magic of SPADs lies in their ability to trigger an avalanche current—a self-sustaining chain reaction—upon detecting a single photon. This reaction produces a noticeable output pulse, signaling the photon’s arrival.
SPADs rely on three key processes: drift, diffusion, and impact ionization.
– Drift: When a photon hits the SPAD, an electron is released and starts moving due to an electric field.
– Diffusion: This process allows the electron to travel through the SPAD. It helps distribute the photogenerated electron across the depletion region.
– Impact Ionization: As the electron accelerates, it collides with other atoms, releasing more electrons. This cascade continues and creates a strong avalanche current.
SPADs operate by applying a high reverse voltage, known as breakdown voltage. This voltage level is critical as it allows the SPAD to enter Geiger mode.
– Breakdown Voltage: This is the threshold at which the device switches to a self-sustaining state, producing an avalanche current.
– Geiger Mode Operation: In this mode, SPADs detect single photons by triggering a large current from a tiny input signal.
Operating in Geiger mode ensures that any detected photon results in a significant and clear output pulse. This mode enhances the sensitivity of SPADs, making them effective detectors for even the faintest light signals.
SPADs continue to push the boundaries of light detection, improving in crucial areas like reducing dark count rates and enhancing detection efficiency, all while maintaining precise timing resolution.
Single-Photon Avalanche Diodes (SPADs) are crucial for detecting single photons. They achieve this by triggering an avalanche current when a photon hits them. SPADs excel in low-light conditions, making them valuable in various fields like quantum computing and medical imaging. Different types of SPADs are designed to fit specific applications and improve performance.
Discrete SPADs are standalone devices. They are often characterized by their high detection efficiencies and low dark count rates. These SPADs are ideal for applications that need precise photon counting. They work well over a wide spectral range. Discrete SPADs also allow fine control over breakdown voltages and excess bias voltage. This control helps optimize the detection of single photons.
Silicon Photomultipliers, or SiPMs, are arrays of tiny SPADs on a single chip. They are known for their high dynamic range and can handle large numbers of photons simultaneously. SiPMs have excellent timing resolution and are often used in particle physics and medical imaging. They are sensitive to various wavelengths due to their wide absorption layer.
Integrated SPADs in CMOS and BiCMOS technologies allow for advanced integration. These SPADs combine the capabilities of SPADs with modern electronics on the same chip. This integration enhances timing jitter and timing resolution. It is perfect for applications like three-dimensional imaging and range finding. Also, these SPADs can operate at lower power levels and are cost-effective for mass production.
Thick SPADs are designed to improve detection efficiency by using a thicker depletion region. This design increases the interaction between the incident light and the photogenerated electrons. Thick SPADs are suited for tasks that require high photon detection efficiencies and low timing jitter. They maintain robustness even at higher breakdown voltages and reverse voltage levels, making them reliable for demanding environments.
In summary, SPADs come in various types, each with distinct benefits. From discrete SPADs to integrated and thick SPADs, these devices offer unique solutions for detecting single photons efficiently and accurately.
Single-Photon Avalanche Diodes (SPADs) are essential in fields like quantum computing and advanced imaging. Their performance is judged by several key metrics. These metrics help determine how effective these diodes are at detecting individual photons. Understanding these metrics can improve how SPADs are used in different applications.
Photon Detection Probability (PDP) expresses how well a SPAD can detect photons. It is vital to assess how efficient a device is. PDP varies with factors like the spectral range and excess bias voltage. A higher PDP means that the diode is more likely to detect a single photon when it hits the absorption layer.
Dark Count Rate (DCR) refers to the number of false counts a SPAD registers per second without any incident light. These counts occur due to thermal noise in the detector. A lower DCR is desirable, as it indicates fewer false positives. This metric is crucial as it impacts the reliability of single-photon detectors.
Timing jitter measures the variation in time intervals between when a photon hits the detector and when the output pulse occurs. It affects timing resolution, which is important in applications requiring precise time measurements. Lower timing jitter means that measurements are more accurate.
Afterpulsing effects occur when previous avalanche events affect future detection events. This can lead to additional spurious counts, decreasing accuracy. Afterpulsing is influenced by trap states within the depletion regions. Managing these effects is essential to enhancing single-photon detection performance.
Single-Photon Avalanche Diodes (SPADs) have seen significant advancements in recent years. These devices are key for detecting single photons, making them crucial for high-precision applications. Understanding SPAD technology helps improve quantum efficiency and detection accuracy. Recent innovations have led to improvements in various areas such as dark count rates, spectral range, and timing resolution. Below, we delve into two critical areas of advancement: modeling techniques for Photon Detection Probability (PDP) and Dark Count Rate (DCR), and innovations in timing jitter reduction.
Accurate modeling is essential for optimizing SPAD performance. Photon Detection Probability (PDP) and Dark Count Rate (DCR) are two crucial metrics. Recent techniques have enhanced modeling accuracy, helping reduce dark counts and increase detection efficiency. Improvements in these areas involve:
– Advanced simulation tools: These tools model the depletion regions and absorption layers more precisely.
– Refined measurements: New methods allow for better characterization of breakdown voltages and excess bias voltage.
– Enhanced material properties: Use of novel materials lowers the dark count rates by reducing noise levels.
These advancements mean more reliable SPADs with better signal-to-noise ratios, essential for applications in quantum computing and medical imaging.
Timing jitter is the uncertainty in measuring time intervals. Reducing timing jitter in SPADs improves their timing resolution, vital for capturing fast, transient events. Recent innovations include:
– Improved electric field control: Enhanced designs ensure a uniform electric field, which reduces the self-sustaining avalanche effect.
– Refined output pulses: Adjusting the avalanche current helps to produce cleaner pulses with reduced timing jitter.
– Optimized dead time management: Shorter dead times allow SPADs to reset faster, improving dynamic range and photon detection efficiencies.
These improvements not only enhance performance in existing applications but also open doors to new possibilities in fields like time-correlated single-photon counting and lidar systems.
Overall, these advancements in SPAD technology continue to push the boundaries of what’s possible in photon detection, paving the way for future innovations and applications.
Single Photon Avalanche Diodes (SPADs) are versatile devices used in various applications due to their ability to detect single photons. They excel in detecting low levels of light with high precision. Their applications span many fields, offering significant benefits like high quantum efficiency, excellent timing resolution, and the ability to detect single photons. Below are some key areas where SPADs are making an impact.
In biophotonics, SPADs are essential for studying biological processes. They help researchers observe cells and tissues at a microscopic level. SPADs provide high sensitivity and rapid detection, making them ideal for capturing fast biological events. They can measure dark count rates and offer a broad spectral range for precise data collection.
Fluorescence Lifetime Imaging (FLIM) benefits greatly from SPADs. These diodes help measure the time intervals of light emission from fluorophores. This technique is crucial for studying molecular interactions. SPADs enhance FLIM by providing accurate timing resolution and reducing timing jitter, leading to clearer imaging results.
In quantum optics, SPADs are critical for experiments dealing with single photons. They enable the study of quantum phenomena by detecting photons with high precision. SPADs boast excellent detection efficiencies and dynamic range. This allows researchers to explore the properties of light and matter at the quantum level.
SPADs play an important role in medical diagnostics. They are used in devices that detect bioluminescent and fluorescent markers. These markers help diagnose diseases at early stages. SPADs’ ability to detect low levels of light means they are perfect for non-invasive testing. Their quick response times and low dark counts provide reliable readings crucial for medical applications.

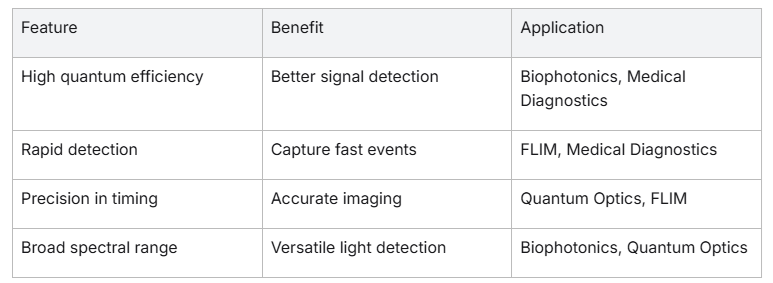

Table: Features of SPADs in Applications
SPADs are thus indispensable tools in various scientific and medical fields. Their ability to detect single photons accurately continues to drive advancements and innovation.
Single-Photon Avalanche Diodes (SPADs) are advanced sensors used for detecting single photons. These diodes operate by creating an avalanche current from a single photon event. They catch even faint glimmers of light due to their high sensitivity and accuracy. Below, we explore the architectural designs that make SPADs effective.
SPADs are often arranged in arrays to enhance detection efficiency and sensitivity. This design allows them to capture more incident light and detect photons with greater precision. Arrays also help to improve the dynamic range by capturing multiple photons across a broader spectral range. An array design can lower dark count rates, which is the false signal that appears in the dark. This helps in reducing errors and improving the quantum efficiency of photon detection.
Benefits of SPAD arrays include:
– Increased detection efficiency
– Wider spectral range
– Reduced dark counts
These characteristics are crucial for applications where spotting rare light events matters, such as in scientific research and telecommunications.
Readout mechanisms are integral to the function of SPADs in photon counting systems. They convert the avalanche current into output pulses that represent detected photons. The timing resolution of these mechanisms is key to determining the exact time intervals of photon arrival. Accurate timing helps in synchronizing the system for precise data processing.
A typical readout system includes:
– A circuit to handle breakdown voltages
– Components to manage excess bias voltage
– Tools to measure timing jitter and dead time
The careful management of these factors helps improve the single-photon detection capabilities of SPADs. A well-designed readout system ensures that the self-sustaining avalanche event is properly tracked and recorded. This process is vital for applications needing high timing precision, like medical imaging and LIDAR technologies.
In conclusion, the architecture of SPADs is a combination of cleverly designed arrays and sophisticated readout systems. These components work together to achieve high sensitivity and accurate photon detection.
Single Photon Avalanche Diodes (SPADs) are at the forefront of photon detection. They convert single photons into electrical signals. However, there are challenges to address. Researchers are striving to improve SPADs to make them more efficient and reliable.
SPADs hold promise in many areas:
– Quantum Computing: SPADs can detect single photons used in quantum information systems.
– Medical Imaging: Better SPADs could lead to sharper and more efficient imaging techniques.
– LIDAR Systems: In autonomous vehicles, SPADs could improve detection and response times.
– Astronomy: With high sensitivity, SPADs may help in spotting faint celestial bodies.
Future advancements may focus on enhancing dynamic range and improving detection efficiencies. Creating SPADs with larger spectral ranges will broaden their use in various light conditions. Additionally, developing new materials for absorption layers could lead to more reliable detections of incident light.
